Advanced Photonic IC Design with Luceda Photonics Design Platform 2025.09.0 (IPKISS)

Elevate your photonic integrated circuit (PIC) projects with the Luceda Photonics Design Platform 2025.09.0, the leading Python-based software for seamless PIC design, simulation, and validation. Whether you’re an experienced photonic engineer or a team optimizing for manufacturability, this powerful tool automates your workflow from parametric component creation to tape-out, reducing errors and accelerating time-to-market. Built on the robust IPKISS framework, it integrates code-driven layouts, circuit simulations, and compatibility with top PDKs and third-party tools like Ansys Lumerical, CST Studio Suite, and Tidy3D. Search no further for the ultimate photonic IC design software – discover how version 2025.09.0 brings innovative features to streamline your integrated photonics development.

---

Key Highlights and Features of Luceda Photonics Design Platform

The Luceda Photonics Design Platform stands out as a comprehensive solution for PIC design automation. Here are its core strengths:

• Python-Powered Parametric Design: Create reusable IP with code-driven layouts and simulations using built-in EME (Eigenmode Expansion) and CAPHE engines for accurate optical and electrical modeling.
• Advanced Routing and Validation: Smart optical/electrical routing, netlist extraction, DRC (Design Rule Checking) integration, and now enhanced LVS (Layout vs Schematic) for fabrication-ready verification.
• Seamless Tool Integration: Compatible with leading simulators and foundry PDKs, ensuring manufacturable designs without silos.
• User-Friendly Interfaces: IPKISS Canvas for intuitive schematic capture, IP Manager for efficient IP handling, and Circuit Analyzer for variability assessments like Monte Carlo and corner analysis.
• High-Performance Visualization: Interactive tools for layout, S-matrix, and DRC violation inspection, making debugging faster and more intuitive.
• Scalability for Teams: Supports IP reuse, version control, and collaboration, ideal for R&D in telecommunications, datacom, sensing, and quantum photonics.

With its focus on “first-time-right” results, this PIC design tool empowers engineers to tackle complex challenges in silicon photonics, InP, and beyond.

---

What’s New in Luceda Photonics Design Platform 2025.09.0

The latest release, Luceda Photonics Design Platform 2025.09.0, introduces groundbreaking enhancements to boost productivity and precision in photonic IC design. Here’s a detailed look at the new functions and improvements:

New Functions and Features

• Interactive S-Matrix Visualizer: A brand-new tool for exploring frequency-domain simulation results. Select port pairs, toggle between linear/dB scales, customize plots, and export as images or interactive HTML files – perfect for sharing insights with your team.
• Layout vs Schematic (LVS) Verification: Run LVS checks directly from IPKISS to ensure design consistency. Extract schematics from GDS layouts, simulate, and compare against golden references. Includes a new tutorial in Luceda Academy for quick onboarding.
• Custom Anchors and Cardinal Anchors: Introduce explicit virtual anchors (i3.Anchor) for precise relative placements in specs. New cardinal anchors (@CE, @CW, @CN, @CS) reference midpoints of bounding box edges, enhancing flexibility in circuit layouts.

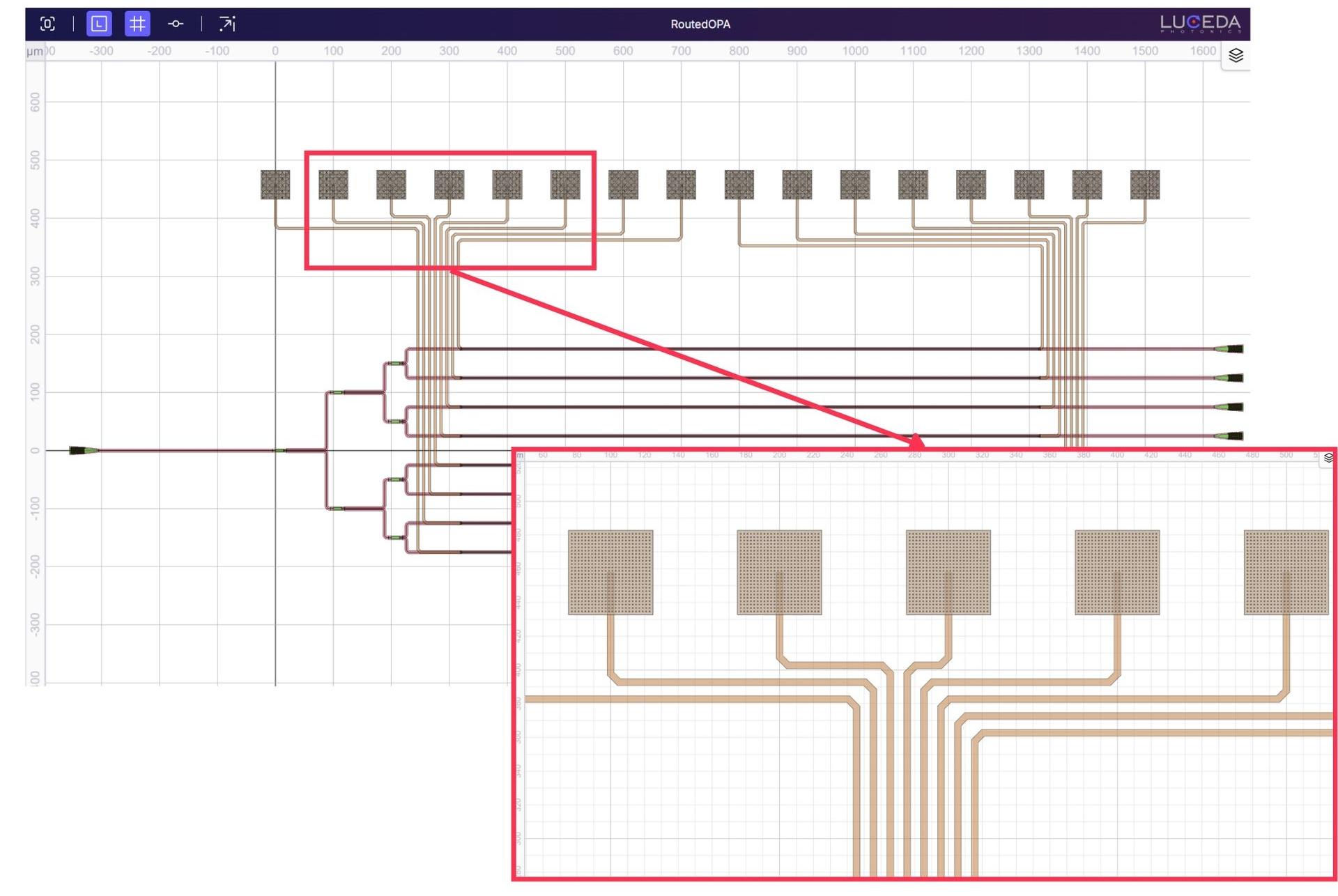

• Enhanced Electrical Routing: i3.ConnectElectrical and i3.ConnectElectricalBundle now support chamfer_length for 45-degree chamfers on 90-degree corners, improving footprint efficiency and yield.
• Shape Modification Tools: New i3.ShapeManhattanStub for stubbing 90-degree corners with 45-degree chamfers, reducing sharp angles in designs.
• GDSII Port Export/Import: write_gdsii now optionally exports ports as rectangles with encoded info (name, position, angle). Read back seamlessly with i3.GDSCell.
• DRC Violation Visualization: Visualize DRC issues like sharp angles or layer overlaps directly on layouts for faster iterations.
• Canvas Upgrades: Duplicate instances in matrix patterns, group multiple instances of the same cell, and draw bundled nets between groups, single instances, or external terms.
• Circuit Analyzer Enhancements: Better control from IPKISS Canvas for defining schematics, configuring simulations with corners, visualizing results, and iterative development. New visualize_smatrices for interactive plots in Corner and Monte Carlo Analysis.
• Luceda Academy Samples and Tutorials: New samples for waveguide mode solving (requires Femwell), location-aware variability analysis of ring demultiplexers, corner and power budget analysis for MUX devices, and more. Plus, a dedicated LVS tutorial.

---

Improvements

• Spec Verification Warnings: Clearer warnings when specs can’t meet design intent, aiding quick adjustments.
• Simplified Bend Routing: i3.ConnectBend and i3.RouteSBend generate simpler bends in certain cases for optimized paths.
• Visualizer Enhancements: Display fill patterns from PDK styles, reveal instance ports and names on click (with clipboard copy), and improved panning controls matching Canvas.
• Layer Management: Easier hide/show all layers in the visualizer’s side pane.
• Variability Configurations: Support global fixed parameters without corners; more robust querying of libraries/cells.
• PDK Layer Creation: Simplified with a single tech.yaml file for human-readable setup.

These updates make Luceda IPKISS 2025.09.0 even more efficient for high-stakes integrated photonics projects, with backward compatibility notes available for smooth upgrades.

---
